Rest 30 Minutes First: Battery Tester Rules and DIN/EN/IEC (Germany)

The most reliable routine test for any battery is a resting-voltage check followed by a conductance or load test when the result is borderline or the battery is critical to safety. Match the tester's mode to the battery's chemistry before you read anything. Stop immediately if a battery is hot, swollen, leaking, or cracked. A voltage number alone rarely tells the whole story, but it tells you whether to keep testing or walk away.

TL;DR:

• Conductance testers are the best for routine health monitoring of starter batteries and can reveal decline long before failure, but only if used with correct algorithm settings for the battery chemistry.
• Resting voltage measurement is quick but insufficient alone; it must be combined with a load or conductance test for an accurate assessment of usable capacity.
• Testing flooded, AGM, or EFB batteries requires selecting the proper mode on the tester and allowing the battery to rest for at least 30 minutes after driving or charging to avoid surface charge distortion.
• Household and button cell batteries are best tested with dedicated load testers that provide load-based voltage readings, which reveal whether a cell is truly weak or still good.
• For ambiguous results or critical batteries, a controlled discharge (capacity) test provides the definitive measurement of actual amp-hour capacity.

Table of Contents

• Types of Battery Testers and What They Measure
• Safety, Inspection, and Preparation Before Testing
• Step-by-Step: Testing Car Batteries (Starter and AGM/EFB)
• Testing Household Batteries and Button Cells
• How to Interpret Readings: Resting Voltage, the 40 to 80 Rule, and SOH
• Advanced Tests and Relevant Standards
• Common Problems, Troubleshooting, and Quick Fixes
• AkkuPlus Tools and Services for Testing and Repair
• When Should You Actually Test a Battery?
• Where to Buy Testers, Chargers, and Get a Professional Test
• Sources
• FAQ

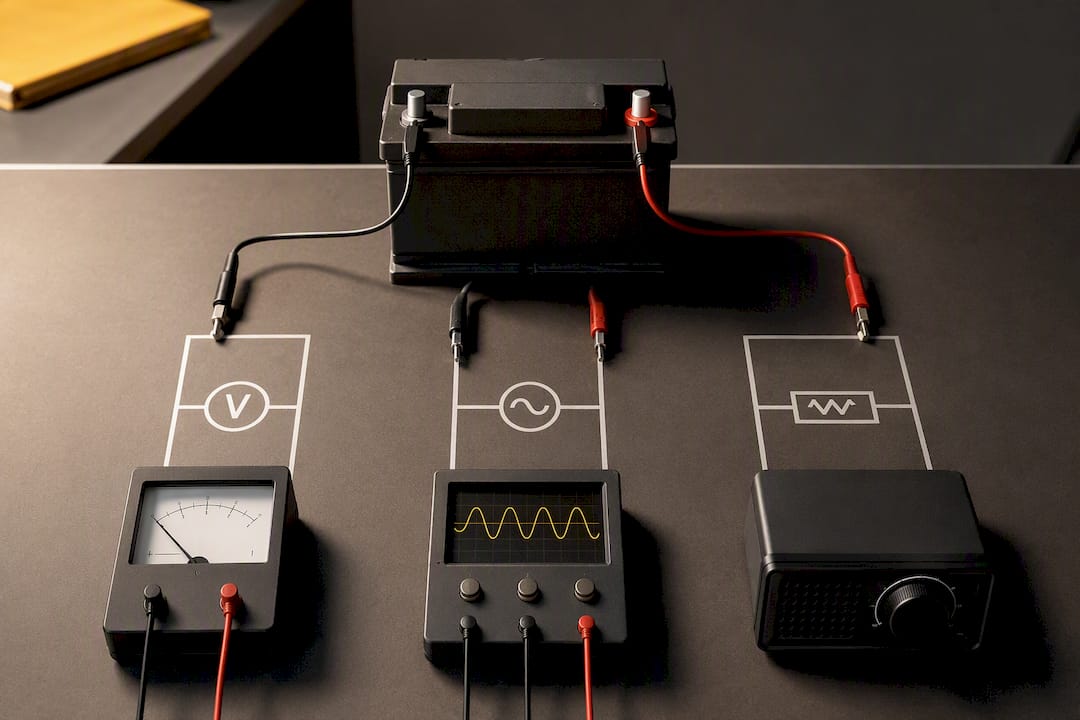

Types of Battery Testers and What They Measure

Every battery tester answers a different question, and knowing which one you're holding matters more than the brand on the case.

A multimeter or voltmeter gives you resting voltage, which is a rough proxy for state of charge. It's the fastest check you can run and works fine for a quick "is this battery dead" screen, but voltage alone can't tell you if a battery has lost usable capacity through age or sulfation. A battery can rest at a healthy voltage and still fail under load.

Conductance, admittance, and impedance testers send a small AC signal through the battery and estimate internal health from the electrical response. They're fast, don't drain the battery, and are the standard tool for starter batteries in workshops and at auto parts counters. Their real strength shows up over time: tracking the same battery's conductance reading month over month reveals decline long before it strands you.

Load testers and controlled discharge (capacity) testers pull real current from the battery and watch how voltage holds up. This is the only method that directly proves usable capacity in amp-hours, which is why it's the reference test when a conductance reading is ambiguous or a battery is under warranty dispute.

Matching the tool to the battery type matters:

• Standard flooded starter batteries work with any of the three methods, but conductance testers need the correct algorithm selected.
• AGM and EFB batteries (common in stop start vehicles) require the tester set specifically to that chemistry, since manufacturer guidance confirms devices apply different test algorithms by battery type.
• Household AA, AAA, 9V, and coin cells are best served by a dedicated handheld tester or a multimeter, since load testers built for 12V automotive batteries are the wrong scale entirely.

Safety, Inspection, and Preparation Before Testing

Before any meter touches a terminal, look at the battery itself.

1. Check for swelling, bulging, or a case that looks distorted. Stop and do not test further.
2. Look for leakage, white or greenish corrosion at the terminals, or any crust around the posts.
3. Inspect for cracks in the casing, especially on the top near vent caps.
4. Confirm polarity before connecting any probe, and keep tools away from creating a short across the terminals.
5. Work in a ventilated area and disconnect the battery from the device's circuit when testing standalone.

Lithium batteries deserve extra caution. A lithium cell that's hot to the touch, swollen, or has been dropped should not be tested at all; it should be isolated and handled as a disposal or professional-service issue. Button cells carry their own risk profile entirely separate from voltage readings. According to BfR guidance, button cells pose real ingestion and burn hazards, particularly around children, and clinical cases of chemical burns from swallowed cells are well documented.

Pro Tip: Keep loose button cells in their original blister packaging until use. A cell rolling around in a junk drawer is exactly the kind of thing a toddler finds.

Step-by-Step: Testing Car Batteries (Starter and AGM/EFB)

Car battery testing rewards patience more than expensive equipment. The sequence matters as much as the tool.

Let the vehicle sit for at least 30 minutes after driving or charging before you measure anything. This isn't a formality. Surface charge, the residual voltage bump left on the plates right after charging or driving, can make a weak battery look deceptively strong for a short window. Skipping this rest period is the single most common reason DIY test results don't match what a shop finds later.

Here's the reproducible procedure:

1. Rest the battery. Wait at least 30 minutes with the engine off and no accessories running.
2. Set the tester to the correct mode. Select starter, AGM, or EFB on the device, and enter the CCA (cold cranking amps) rating from the battery label if the tester asks for it.
3. Measure resting voltage first. Note the number and the ambient temperature, since cold weather suppresses readings slightly.
4. Run the conductance or load test. Follow the tester's prompts; this is where you get a health/pass/fail indicator beyond raw voltage.
5. Record the result. Write down the reading, date, and temperature so you have a baseline for next time.
6. Charge and retest if borderline. A "weak" or "recharge and retest" result means charge fully, rest again, and repeat the test before condemning the battery.

Some manufacturer manuals go further, recommending a few charge/discharge cycles for batteries that sit unused for long stretches before a valid test is possible, according to one tester's user manual. If the second test still comes back weak, or the battery is critical (fleet vehicle, emergency equipment), a controlled discharge capacity test at a workshop is the next step. It's the only test that proves actual amp-hour capacity rather than estimating it.

Testing Household Batteries and Button Cells

Household battery testing is simpler, but the same voltage-only trap applies.

A handheld LCD battery tester built for AA, AAA, 9V, and coin cells applies a small load while reading voltage, which gives you a far more honest picture than a bare multimeter reading resting voltage alone.

• A multimeter on a fresh alkaline AA typically shows around 1.5V whether the cell has 10% or 90% of its life left, because voltage stays flat until the cell nears exhaustion.
• A discharge-style tester reveals that flat-voltage trap by showing "good," "weak," or "replace" based on how the voltage sags under load.
• Coin and button cells need a tester designed for their smaller voltage range (1.5V or 3V depending on chemistry); a standard AA tester's load is often too aggressive and gives a false "weak" reading.
• Store spare button cells in original packaging, away from children, and dispose of drained ones through a battery recycling point rather than household trash.

How to Interpret Readings: Resting Voltage, the 40 to 80 Rule, and SOH

A voltage number only matters in context. For a conventional 12V starter battery at rest, ADAC's testing guidance maps voltage to approximate state of charge like this:

AGM batteries typically rest slightly higher across the same charge range, which is another reason the tester needs to know the chemistry before you trust its verdict.

The 40 to 80 rule is less about testing and more about battery longevity, particularly for AGM, lithium, and deep-cycle batteries used in seasonal storage or auxiliary power roles: keeping state of charge between roughly 40% and 80% during storage reduces stress on the plates compared to sitting at a full or near-empty charge for weeks. It doesn't apply the same way to a starter battery that's cycled daily by driving.

Don't confuse CCA with capacity. CCA (cold cranking amps) measures how much current a battery can deliver for a few seconds in cold conditions, which is what a conductance test estimates. Capacity (Ah) measures total energy storage over a longer discharge, which only a controlled discharge test proves directly. A battery can have acceptable CCA and still show reduced capacity, which is exactly why a low or borderline voltage reading should trigger a capacity test rather than a guess.

Battery failures aren't rare edge cases. Roadside data cited by VARTA put battery-related breakdowns at around 44.9% of roadside callouts in a recent reporting period, which is a strong argument for testing before a battery fails rather than after.

Advanced Tests and Relevant Standards

A single impedance or conductance reading tells you less than most people assume. According to ZVEI's technical guidance, impedance values shift with test frequency and method, so they aren't directly comparable to a manufacturer's stated DC resistance figure. A number in isolation can mislead you.

What actually works:

• Track the same battery's conductance or impedance reading over months rather than judging one isolated number.
• Compare readings across a battery bank or "strand" of identical cells rather than against a generic published figure, an approach ICS Schneider's technical guidance recommends for maintenance programs.
• Note the temperature at the time of every measurement, since resistance readings shift with heat and cold.
• Reserve controlled discharge testing, the method DIN EN IEC standards reference for vented and VRLA batteries, for cases where you need proof of actual capacity, not just an estimate.
• Log every result with date, temperature, and tester mode so a future reading has something real to compare against.

Common Problems, Troubleshooting, and Quick Fixes

Most "bad" readings aren't a bad battery. They're a bad connection.

• Corroded or loose terminals create contact resistance that mimics a weak battery. Clean and retighten before you condemn anything.
• Testing right after driving or charging catches surface charge, producing a falsely high voltage. Rest the battery first.
• Cold temperatures suppress voltage and CCA readings across the board, so compare against a temperature-adjusted expectation, not a summer baseline.
• A battery that fails the same test twice after a full recharge, or shows physical damage, has moved past DIY territory into workshop or capacity-test territory.

Pro Tip: If two testers give you two different verdicts on the same battery, check that both were set to the same battery mode before assuming either device is wrong.

AkkuPlus Tools and Services for Testing and Repair

AkkuPlus stocks LCD battery testers for household and button cells, plus chargers like the goobay NiCd/NiMH charger with test and discharge function for hobbyists who need real discharge data, not just a voltage guess. The Akku Power A36 analysis and discharge set suits anyone running DIY capacity checks on rechargeable packs. Beyond hardware, AkkuPlus offers paid battery testing and repair services, including cell replacement, for batteries that turn out to need more than a charge.

This section reflects the editorial perspective of Waldemar Pelich.

When Should You Actually Test a Battery?

Test a daily-driven car's battery twice a year; test one that sits often, like a seasonal vehicle, before every start-up window. Clean terminals, avoid long low charge storage, and a maintenance charger will do more for battery life than any single test result ever will.

— Waldemar Pelich

Where to Buy Testers, Chargers, and Get a Professional Test

If you'd rather not guess your way through a borderline reading, AkkuPlus sells the same category of tools covered in this guide, LCD testers for household and button cells, chargers with built in test and discharge functions, and packs for rebuilding tired battery systems, alongside paid testing and repair services for when a DIY reading isn't conclusive.

A paid AkkuPlus battery test gives you a written result, not just a beep: a clear read on whether the battery needs a recharge, a replacement, or a repair, which matters most for AGM, lithium, and specialty batteries where a wrong guess is expensive. If your car battery just failed its second borderline test, or a device battery won't hold charge and you're not sure whether it's the cell or the circuit, start at the AkkuPlus home page to browse repair and testing services, or head straight to the battery category if you already know a replacement is coming.

Sources

• ZVEI guidance on battery impedance and capacity testing
• BfR guidance on button cell risks
• VARTA Automotive: Testing the battery — step by step
• ADAC: How to test a car battery

FAQ

What Should a Battery Read on a Battery Tester?

A healthy conventional 12V car battery at rest should read around 12.7 to 12.8 volts, roughly 100% state of charge. Readings below 12.4V suggest recharging, and below 11.9V often point to a failing battery that needs a capacity test.

What Is the 40 to 80 Rule for Batteries?

It reduces plate stress compared to storing a battery fully charged or nearly empty, though it doesn't apply the same way to a starter battery cycled daily by driving.

How Do I Properly Use a Battery Tester?

Let the battery rest at least 30 minutes after driving or charging, then set the tester to match the battery's chemistry, starter, AGM, or EFB, before measuring. Check resting voltage first, then run the conductance or load test, and recharge and retest once if the result comes back borderline.

What Is the Most Accurate Battery Tester?

No single tester type is universally most accurate; a controlled discharge (capacity) test is the most direct proof of usable capacity, while conductance testers are faster and better suited to routine trend monitoring. For most drivers, pairing a resting-voltage check with a conductance test covers the vast majority of cases, and AkkuPlus's paid testing service handles the controlled discharge step when a result is genuinely inconclusive.

Do I Need a Different Tester for AGM or EFB Batteries?

Yes. AGM and EFB batteries need the tester set to that specific chemistry, since devices apply different algorithms by battery type, and using the wrong mode can produce a misleading pass or fail result. Always check the battery's label before running the test.
